Features

No frost

When you open your freezer, you want to see frozen food – and certainly not ice and frost. NoFrost protects the freezer compartment from unwanted icing, which consumes a lot of energy and can be expensive. NoFrost means no more tedious and time-consuming defrosting of the freezer compartment, more time for other things – and saving money.

Touch & Swipe display

Control of your Liebherr at your fingertips: thanks to the Touch & Swipe display, you can operate your refrigerator intuitively and with ease. Simply select functions such as SuperCool on the colour display by tapping and swiping. The temperature is controlled just as easily. And, what if you are not actively using the display? Well, it then shows you the actual temperature

IceTower

You will never run out of cold drinks at your party. The IceTower, which holds 5.7 kg of ice cubes, makes sure of that. The ice cube scoop and the pull-out tray on telescopic rails allow easy access to the ice cubes. An extra insert tray means you can also store less ice and make room for frozen food underneath. The adjacent drawer provides storage space for frozen goods.

LED-IceMaker

Allow ypurself a small moment of happiness everyday by simply taking a look at your fresh ice cubes. The IceMaker lighting coolly places your ice cubes centre stage. The LED lighting activates automatically when the door is opened. The illuminated ice cubes are fun to look at and when your appetite for an ice cold drink

SoftSystem

From breakfast to a midnight snack – a fridge needs to be open and closed on many occasions. And your Liebherr makes this is a lot of fun. With the SoftSystem, your fridge door closes softly and safely, and in a way which is pleasantly quiet and light. Bottles stored in the inside door remain securely in place – nothing rattles or wobbles

VarioSpace

Looking for somewhere to safely store a multi-tiered ice cream cake until the summer party? No problem for your Liebherr freezer: it knows that sometimes you just need more space. Thanks to VarioSpace, you can simply remove individual freezer drawers – and voilà: here’s your extra-high storage space!

Super silent

Shhh – listen carefully. Your Liebherr is so quiet that you have to strain your ears to hear it. How is this achieved? All refrigeration components such as compressors, valves, fans and evaporators are optimised and perfectly adapted to one another. This means you only hear what you want to hear in your kitchen.

Ice cube scoop

The Liebherr ice scoop makes portioning and transporting ice easy. Thanks to the slanted tip and the ergonomic handle, ice cubes can make it from your IceTower into your drinks quickly and easily. The robust ice scoop made of sturdy plastic is also pleasing to the eye thanks to its satin surface in transparent glacier green.

LED freezer compartment lighting

When you open the drawers in your Liebherr freezer, not only are you welcomed by the sight of your food, but also by the attractive lighting. This is provided by powerful, long-life, environmentally-friendly LEDs. The lighting makes it even easier to see all of the contents and is also a unique design element

Replaceable door seal

Do you think the door seal on your Liebherr needs to be replaced after a few years? This is very easy to do yourself. The replaceable door seal can be removed in a few simple steps – and the new seal is just as easy to insert. As a result, this part of the refrigerator is always spotless and hygienically clean

Freezer tray

Do you want your frozen berries to be fresh and firm after defrosting – and to not turn into a compote? The freezer tray is ideal for this type of delicate food. When spread out well on the plastic tray, fruits and herbs freeze quickly and without being squashed. You can easily insert the freezer tray in the freezer drawer and remove it again

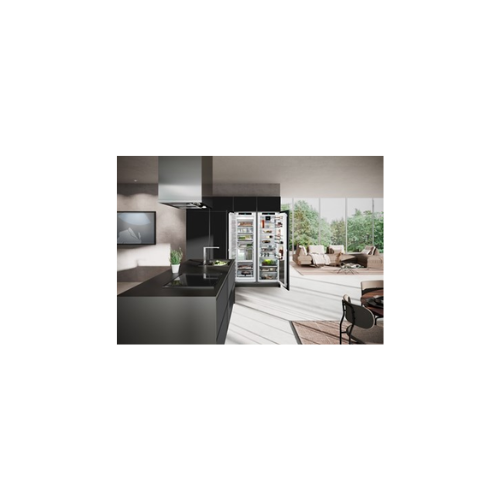

Side by Side concept

Whether they’re next to or on top of one another, you can position your modular Liebherr appliances however you want. Create your own personal freshness centre from a combination of fridge, freezer, wine storage cabinets or full-space BioFresh. Typical Liebherr quality: A special technology in the ceiling and the side walls prevents condensation between the appliances – keeping the furniture fully protected.

Drawer

Convenient to pull out and push in: the drawer has plenty of extra space. And when you pull it out, it slides out gently, as it rests on telescopic rails. The drawer slides back in just as gently and quietly

Dishwasher safe features

he features of your Liebherr are practical in two ways: Not only do they simplify everyday use, they are also very easy to clean. Want to clean the easily removable drawers? Just put them in the dishwasher. Then you’ll have more time for other things.

Technical Data
General Product Information
Model typeFreezer for integrated use with NoFrost
GTIN4016803082538
Seriespeak
Output & consumption
Energy consumption in 24h1.090 kWh / 24h
Climate classSN-T
Humidity range
Noise level35 dB
Voltage220-240 V ~
Frequency50-60 Hz
Connection rating1.3 A 186 W
Energy consumption per year398 kWh/a
Freezer compartment249 l
Control & functions
Control2,4“ TFT colour display, Touch & Swipe display
Control unitTouch & Swipe
Number of temperature zones1
Number of regulated refrigeration circuits1
Temperature displayFreezer
Front frame heatingRefrigerator and freezer compartment
SuperCool
SuperFrostAdjustable on appliance and via app
Door alarm, freezingAdjustable on appliance and via app
BottleTimerAdjustable on app
IceCubeTimer
NightMode
Display lockAdjustable on appliance
Freezer Compartment
Temperature range freezer compartment-15 °C to -28 °C
Cooling technologyNoFrost
Defrosting methodautomatic
Storage time in case of fault according to GS *9 h
Freezing capacity in 24 hours according to GS *10 kg / 24h
No. of drawers in freezer compartment8
FrostSafeDrawers closed on all sides with transparent front
Drawer pull-out system, freezer compartmentPartially-extendible telescopic rails
Interior light, freezer compartment
VarioSpace
IceMakerYes
Type of hoseMains water hose with WaterStop
IceMaker safe lighting
IceTower
Ice cube tray
Number of ice cube trays0
Number of water filters0
Freezer tray1
Star-rating4
Design & materials
Dry rear panel
Material dry back wall
Inner door décor
Material of adjustable shelves in the freezer compartmentGlass
Setup & installation
Type of installationDesigned for integrated use
Door assemblyFixed door
Max. kitchen unit door weight26
Door hingesLeft reversible
Door hinge replacementPossible for customer
Door opening angle115°
Door sealReplaceable
Height-adjustable feet2
Levelling bars
Number of levelling bars2
VentilationVentilation grates
Plug typeAustralia
Connector cable (length)2,200 mm
Specifications
Dimensions H/W/D177 / 55.9 / 54.6 cm
Aperture dimensions height/width/depth177.2 - 178.8 / 56 - 57 / 55.0 cm
Height / Width / Depth (with packaging)1,877.0 / 575.0 / 622.0 mm
Weight (without packaging)68.9 kg
Weight (with packaging)74.4 kg
Freezer compartment200 l
Weight 74.4 kg
