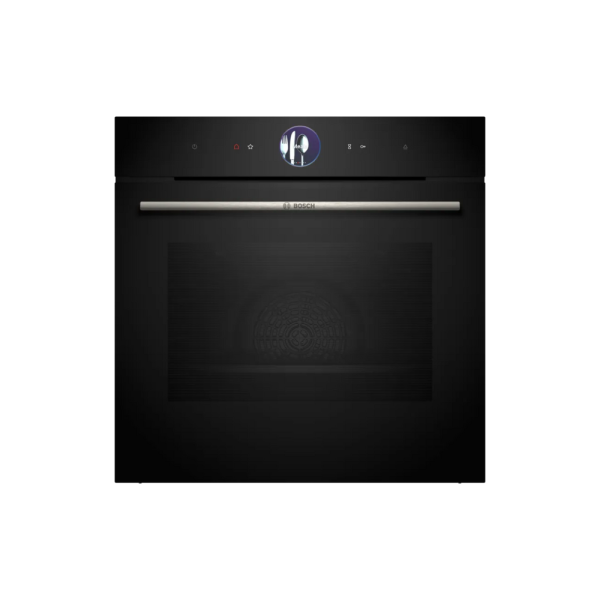

Built-in Oven with Steam Function 60 x 60 cm Black
Previous slide
Next slide

Technical Overview

Dimensions (HxWxD)
595 x 594 x 548 mm
Display concept
TFT touchdisplay with digital control ring
Steam technology
Baking sensor with time prediction, Multipoint meatprobe with time prediction
Pull-out system
Plug type
Gardy plug w/ earthing
Connected appliance


When intuitive meets digital.

With our Digital Control Ring, operating your oven is not only easier but is also more innovative. Instead of rotary knobs, you intuitively adjust your oven settings directly on the control panel using just your index finger. Simply move your finger across the ring engraved on the control panel and confirm the desired setting with your fingertip.

Puts your food on display.

The innovative Digital Control Ring makes cooking easier than ever. With a slight turn of the engraved centre ring, you can adjust any of your oven’s settings with just one finger. You’re supported by the full-surface, high-resolution, plain-text TFT touchscreen and directly selectable buttons. Clear images and info texts on and inside the Control Ring assist you through each step as you navigate in the menu. Thust, you always have a complete overview and full control over your oven.

Steam to perfection.

Do you want to bake bread or roast chicken with added steam for more crisp and moisture? A precise sensor constantly measures the oxygen, calculates the humidity level in the oven cavity and automatically regulates the steam amount. As soon as you select the Added Steam function or a dish program with steam support, the sensor is activated and regulates the perfect amount of steam. Perfect Steam does it all automatically.

Fry this at home.

Why not make your own potato crisps? Or make crisps out of fresh vegetables instead of potatoes? Simply place thinly sliced potatoes or other vegetables on the fine-mesh Air Fry tray, add a little oil, and select the Air Fry function, and soon you’ll be comfortably snacking in front of the TV. And here’s another tip: You can also use the Air Fry function to prepare small grilled dishes. The Air Fry tray (HEZ629070) is available as an accessory.


Main colour of product
Number of heating & combination modes
Range of temperature
30-250 °C
Water intake
Removable water tank
Door concept
damped, Bottom
Safety device
childproof lock, Residual heat indicator, Safety switch-off func oven, start button, Door contact switch
Detachable door glass
Display concept
TFT touchdisplay with digital control ring
Cooking method
Defrost, Steam 100%, fermentation, Regeneration, 4D hot air, Air fry, Full width grill, Hotair gentle, Half width grill, Conventional heat gentle, Pizza setting, low temperature cooking, Bottom heat, Hot air grilling, pre-heating, warming, Conventional heat
Added steam
Volume of watertank
1.0 l
Pull-out system
Usable volume
71 l
Included accessories
1 x enamel baking tray, 1 x grid, 1 x universal pan, 1 x steam container, punched, size XL, 1 x Steam container, punched, size M, 1 x Steam container, unpunched, size M
Size and weight
Dimensions (HxWxD)
595 x 594 x 548 mm
Maximum height for installation
595 mm
Maximum width for installation
568 mm
Net weight
40.4 kg
Minimum height for installation
585 mm
Minimum width for installation
560 mm
Depth for installation
550 mm
Technical specifications
Plug type
Gardy plug w/ earthing
220-240 V
Fuse protection
16 A
Length electrical supply cord
120.0 cm
Connection rating
3600 W
Cool start
Pizza setting
4D (even heat distribution on any level )
Fast preheat
Baking sensor with time prediction, Multipoint meatprobe with time prediction
Connected appliance
Home Connect Features
iService Remote, Remote Monitoring and Control
