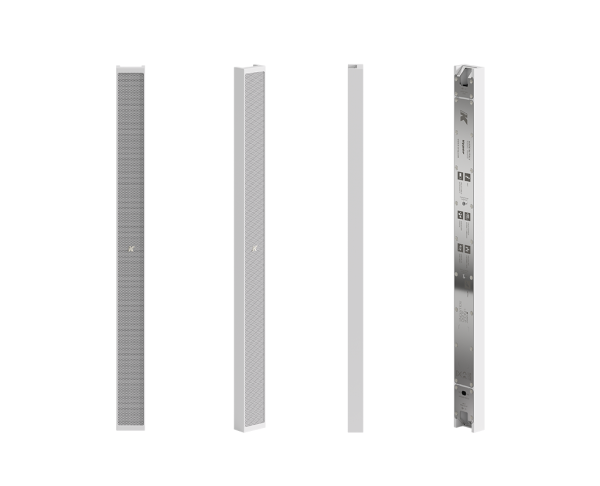

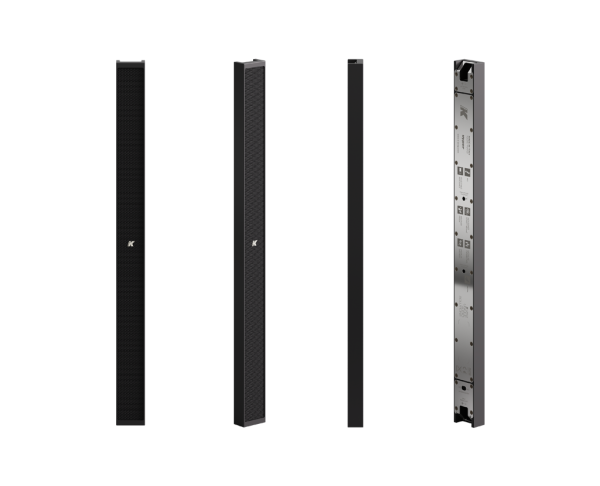

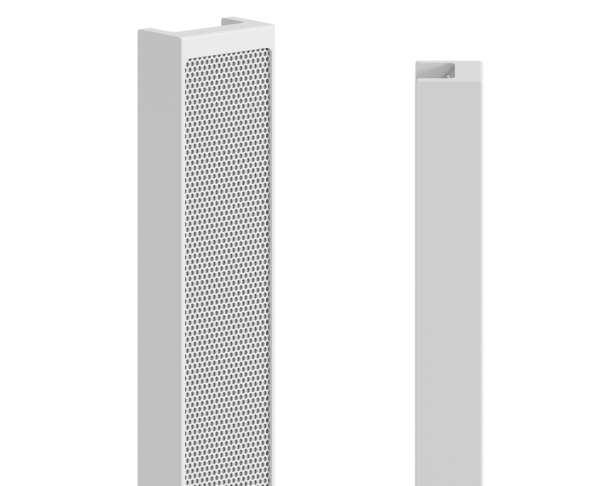

  • Vyper-KV52 II is an ultra-flat passive loudspeaker comprised of eight 1” neodymium magnet transducers each, housed in an elegant yet sturdy aluminum chassis, with a new frameless chassis designed for very elegant discreet installations, perfect for a clean bracketless application on any flat surface.

  • The eight closely-spaced cone drivers provide true line array characteristics: phase coherencelow distortion and focused listening in both the near field and at a distance from the speaker.

  • Two different values of impedance (16Ω – 64Ω) allow to connect up to 16x Vyper-KV52 II loudspeakers at 64Ω impedance to the same 4Ω amplifier output channel, which eliminates the need for 70V lines for wide distributed installed systems where pristine sound, intelligibility and elegance are mandatory.
All Vyper-KV52 II components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.
Slide 1 Heading
Click Here
Slide 1 Heading
Click Here
Slide 1 Heading
Click Here
Previous slide
Next slide

Specifications

GENERAL

  • Type:  Passive line array loudspeaker

  • Transducers:  8x 1” Neodymium magnet woofers

  • Frequency Response:  150 Hz – 18 kHz (-6 dB)

  • Max SPL:  114 dB peak

  • Rated Power:  150 W

  • Coverage:  V. 10° | H. 140°

  • Connectors:  2x Euroblock 2,5/ 2-ST-5,08

  • Nominal Impedance:  16 Ω – 64 Ω



HANDLING & FINISHES

  • Dimensions (W x H x D):  40 x 500 x 22 mm (1.6 x 19.7 x 0.9 in)

  • Weight:  0.8 kg (1.54 lb)

  • Material:  Aluminum

  • Colors: Black, White, Custom RAL

  • Finishes:  24K Gold, Polished


REGULATIONS
  • IP Rating:  IP65

BUILT TO LAST
The Vyper line is designed and hand-assembled in Italy, an elegant and resistant 2"-cm-deep aluminum frame turned on a lathe from a solid metal block
MODULAR UNITS, easy to combine lines of speakers
Thanks to the high impedance and the top-to-bottom pass-through connector system you can combine more than one Vyper into a line of sound to your liking.

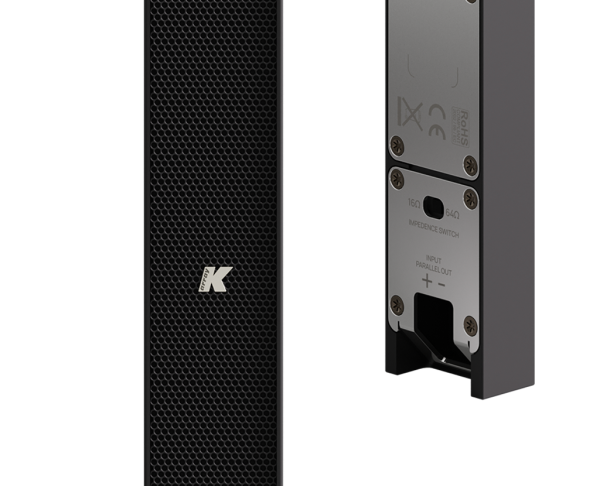

SELECTABLE IMPEDANCE
For easier use and integration with other speakers or amplifiers, the Vypers feature selectable impedance. When paired with one of the subwoofers in the Rumble line and powered by a Kommander amplifier with specific presets, the loudspeaker assures excellent coverage of the entire musical frequency range.
Recessed
Fixing Points
