Lightweight and able to take any form, the Anakonda-KAN200 is a truly revolutionary speaker. These loudspeakers are 2 meters long with 8 x 1″ drivers that deliver a max power of 300W at 64Ω impedence. Integrated male and female Speakon NL4 connectors hide all connections inside the body of the speaker. And by using two amplifier channels with the dedicated K-ANLINK accessory, you can extend your Anakonda system to up to 32 units – 64 meters – which creates an elegant, seamless line of continuous sound. Its dedicated presets work on a wide frequency range and can be used as an audio system in combination with K-array subwoofers.

The product models and codes are:

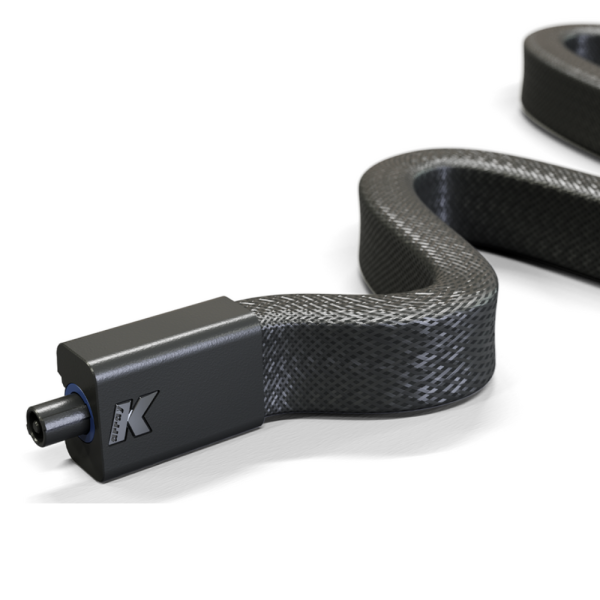

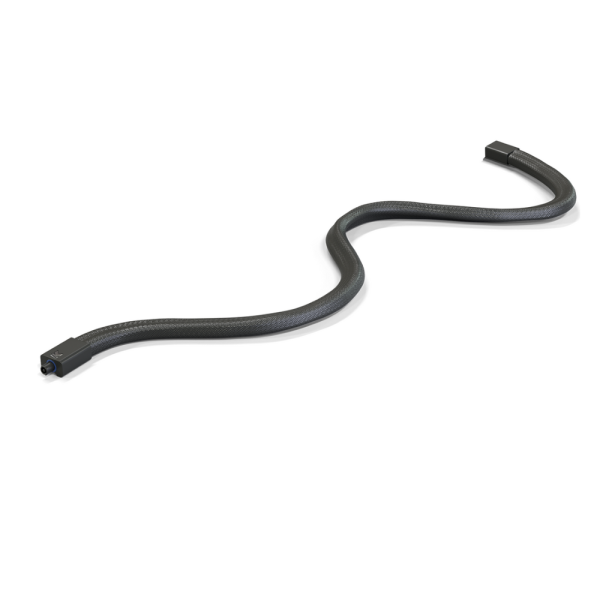

KAN200  black model

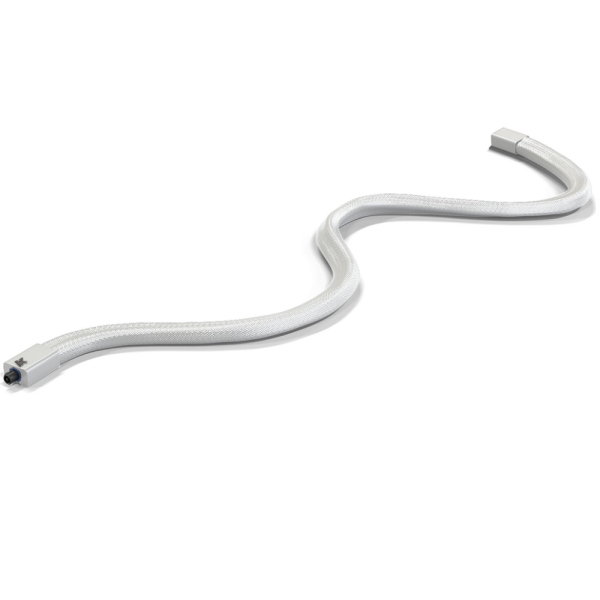

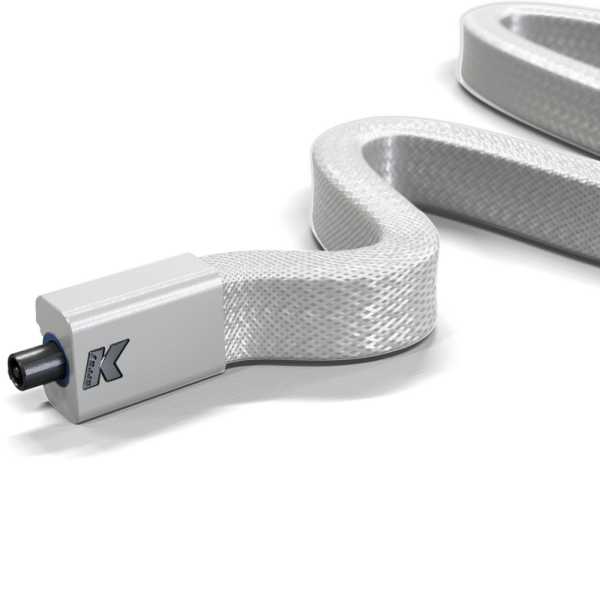

KAN200W  white model

UNIQUE AUDIO SOLUTIONS,
our Anakonda series is the first one that comes to mind as it’s the most revolutionary speaker in our product portfolio.

It is designed as a problem solver for situations where a traditional speaker box can’t be used, but where good intelligibility, ultra-reliability and a sleek design are required.

Flexuous
Body

A flexo PET-grade braid exterior permits the speaker to bend into any seamless shape that you desire while protecting the 1″ cone drivers foreign objects such as dust.

Modular
Capabilities

Each Anakonda module is 2 meters, the loudspeaker is modular so it can create long lines of continuous clear sound.

For maximum adaptability to any venue, our slim line arrays are modular when employing dedicated hardware that allows the joining of more units to reach a desired length and guarantee a perfect coverage.

PAT
Pure Array Technology

although its flexible shape, the Anakonda keeps true line array characteristics: phase coherence, low distortion and focused listening in both the near field and at a distance from the speaker.

This Pure Array Technology allows the Anakonda to cover venues uniformly and provide long throw.

Available in
Black and  White,

Each Anakonda comes with a black and a white fabric sock which can be used to cover and protect the speaker from foreign objects and provide the possibility to change colors to match its surroundings. Wall brackets are included in the package to make the installation as easy and as fast as possible, perfect for concert front fills and theater under-balcony fills. The Anakonda is the perfect fit for any distributed sound application, guaranteeing constant and qualified volumes over the entire sound area.

Visually Discreet
For architectural reasons, a visually discreet audio system may be required to integrate seamlessly with the layout without compromising sound quality.



Weather Resistant
We utilize the most durable and resistant materials when developing our products to protect and conserve the system regardless of the elements, rendering a K-array installation reliable and long-lasting.

Lighweight
We created a portfolio complete with lightweight products that are easy to transportation and quick to setup optimizing logistics, space, labor costs and time.



MuDeTo
Selected by the Web Museum of Tuscan Design

Specifications

General

  • Type:  Line array

  • Transducers:  8 x 1" neodymium magnet woofer

  • Frequency Response:  150 Hz - 18 kHz (-6 dB) (1)

  • Max SPL:  102 dB (peak) (2)

  • Rated Power: 150W

  • Coverage:  V. 10° | H. 140°

  • Connectors:SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)

  • Nominal Impedance:  64 Ω



Specificatios

Handling and Finishes

  • Dimensions (W x H x D):  2000 (±20mm) x 56 x 35 mm (79.5 (±0.8 in) x 2.2 x 1.4 in)

  • Weight:  1.4 kg (3.1 lb)

  • Material: PVC/Neoprene

Colors:  Black, White



Regulations
  • IP Rating:  IP64 (3)

  • (1) With dedicated preset.
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m.
  • (3) More complete water protection with dedicated K-IP65KITB accessory
  • Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

  • New materials and design are introduced into existing products without previous notice.
