The Kommander-KA14I is a fully-featured, 4x600W@2Ω amplifier platform with DSP highly integrated into the K-array collection ecosystem. The Kommander-KA14I offers pristine sound and complete control over the connected loudspeakers, either as a stand-alone driving unit and in conjunction with other K-array amplifiers in complex and demanding applications. The dedicated K-array Connect mobile app provides a user-friendly interface for remote control of the DSP main parameters and easy configuration of the signal routing.

K-framework3 is the managing and control software dedicated to professionals and operators looking for a powerful tool for loudspeakers system design and tuning of large a number of units over a wired LAN.

Previous slide
Next slide

Specifications

GENERAL

  • Type: 4ch switching mode, Class D Amplifier
  • Output Power: 4x 600W @ 2Ω

  • Impedance:minimum 2 Ω
  • Frequency Response:20 Hz – 20 kHz (±1 dB)

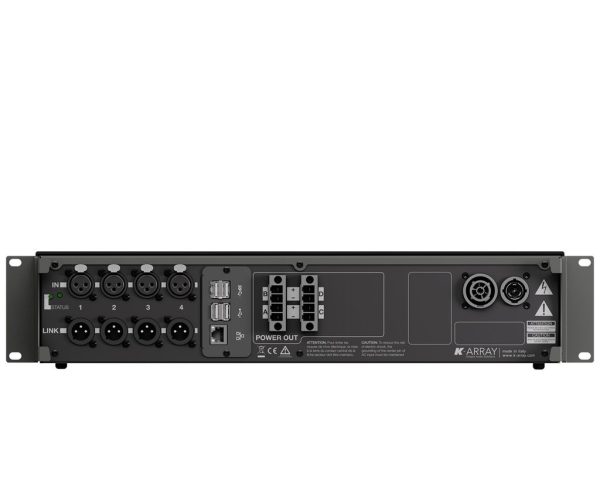

  • Connections:
    Input:
    4x XLR-F bal input
    4x XLR-M bal LINK output

    Output:
    2x PC 4/ 4-ST-7,62 speaker output


    Remote connectivity:
    1x Ethernet RJ45 4x USB-A Wi-Fi IEEE 802.11 b/g/n


    Power:
    1 x PowerCon TRUE IN
    1 x PowerCon TRUE Line



  • Built-in DSP:Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets

  • Remote Control: Wi-Fi and Ethernet dedicated APP and Desktop software

POWER HANDLING

  • Protections: Thermal protection, output short circuit, RMS output current protection, high-frequency protection, power limiter, clip limiter.

  • MAIN Operating Range:100-240V AC, 50-60 Hz with PFC

  • Power Consumption: 400 W @ 4 Ω load, Pink noise, 1/8 rated power



HANDLING & FINISHES

  • Colors: Black

  • Material: Stainless Steel

  • IP Rating: IP20

  • Dimensions (W x H x D): 430 x 87 x 430 mm
    (17 x 3,4 x 17 in)

  • Weight: 6 kg (13,2 lb)
