A suite of class-leading technological innovations drawn from The Reference for exceptional acoustic performance.
An icon born from The Reference
Absorbs 99% of unwanted sound for pure and natural sound.
Metamaterial Absorption Technology
Hybrid aluminium bass drivers with greater driver excursion for tight, deep, controlled bass.
True bass definition
Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.
12th generation Uni-Q®
With a choice of matching home theatre models to pair with, the stage is set for an immersive movie experience.
Home theatre made versatile
With 1801 precision-cut holes for each driver, performance is ensured even when the drivers are covered.
Microfibre grilles
Previous slide
Next slide
Specifications
DESIGN
Three-way bass reflex


DRIVE UNITS
Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome with MAT
MF: 125 mm (5 in.) aluminium cone
Bass Unit:
LF: 4 x 165 mm (6.5 in.) hybrid aluminium cone


CROSSOVER FREQUENCY
330 Hz, 2.5 kHz


FREQUENCY RANGE (-6dB)
30 Hz - 50 kHz


TYPICAL IN-ROOM BASS RESPONSE (-6dB)
26 Hz


FREQUENCY RESPONSE (±3dB)
46 Hz - 28 kHz


HARMONIC DISTORTION (90dB, 1m)
<1% 33 Hz and above
<0.5% 80 Hz - 20 kHz


MAXIMUM OUTPUT
113 dB


AMPLIFIER REQUIREMENTS
15 - 300W


NOMINAL IMPEDANCE
4 Ω (min. 3.2 Ω)


SENSITIVITY (2.83V/1m)
90 dB


WEIGHT *
36.5 kg (80.5 lbs)


DIMENSION (H x W x D) WITH TERMINAL *
1249 x 200 x 384 mm (49.2 x 7.9 x 15.1 in.)


DIMENSION (H x W x D) WITH TERMINAL WITH PLINTH *
1296 x 311 x 384 mm (51.0 x 12.2 x 15.1 in.)


FINISHES

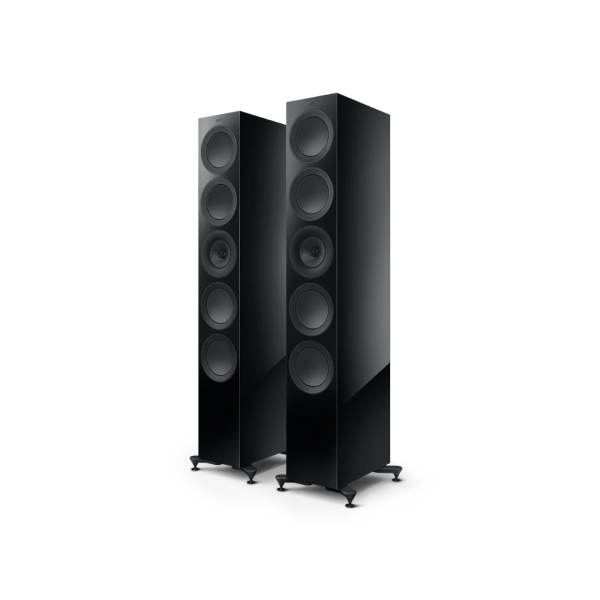

  • Black Gloss

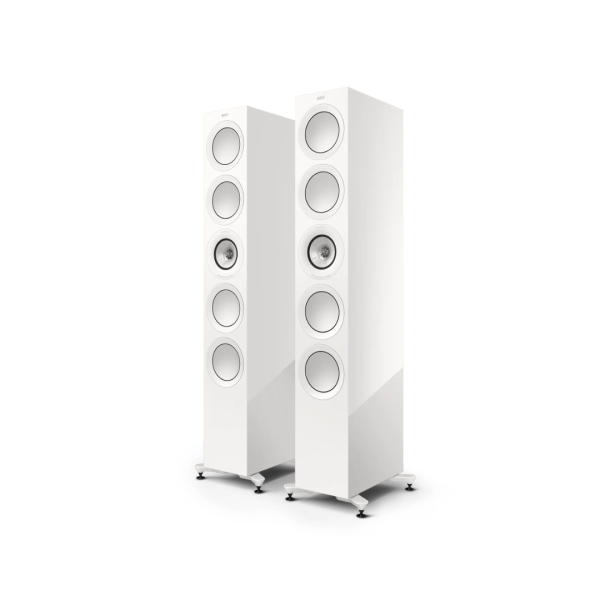

  • White Gloss

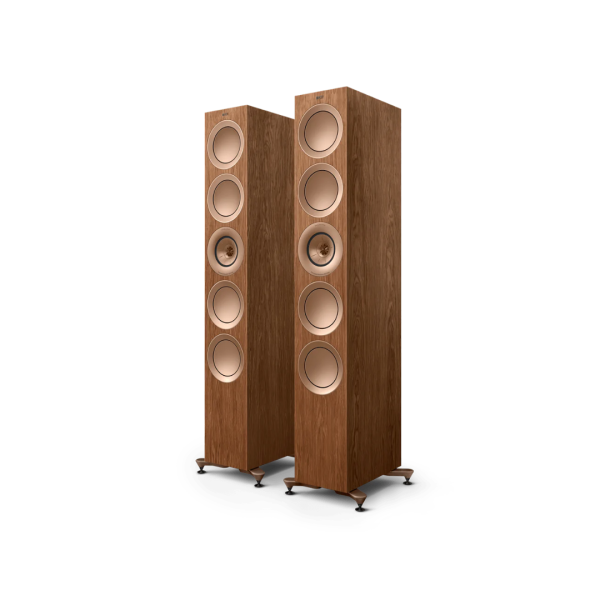

  • Walnut

* Measurement per unit
In the Box
  • R11 Meta
  • Microfiber grille
  • Plinth and spike accessories
  • Port bungs
  • User manual and warranty information
