A suite of class-leading technological innovations drawn from The Reference for exceptional acoustic performance.
An icon born from The Reference
Absorbs 99% of unwanted sound for pure and natural sound.
Metamaterial Absorption Technology
Hybrid aluminium bass drivers with greater driver excursion for tight, deep, controlled bass.
True bass definition
Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.
12th generation Uni-Q®
With a choice of matching home theatre models to pair with, the stage is set for an immersive movie experience.
Home theatre made versatile
With 1801 precision-cut holes for each driver, performance is ensured even when the drivers are covered.
Microfibre grilles
Previous slide
Next slide
SPECIFICATIONS
DESIGN
Three-way bass reflex


DRIVE UNITS
Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome with MAT
MF: 125 mm (5 in.) aluminium cone
Bass Unit:
LF: 2 x 130 mm (5.25 in.) hybrid aluminium cone


CROSSOVER FREQUENCY
400 Hz, 2.7 kHz


FREQUENCY RANGE (-6dB)
38 Hz - 50 kHz


TYPICAL IN-ROOM BASS RESPONSE (-6dB)
29 Hz


FREQUENCY RESPONSE (±3dB)
52 Hz - 28 kHz


HARMONIC DISTORTION (90dB, 1m)
<1% 75 Hz and above
<0.5% 110 Hz - 20 kHz


MAXIMUM OUTPUT
110 dB


AMPLIFIER REQUIREMENTS
15 - 200W


NOMINAL IMPEDANCE
4 Ω (min. 3.2 Ω)


SENSITIVITY (2.83V/1m)
87 dB


WEIGHT *
24.5 kg (54.0 lbs)


DIMENSION (H x W x D) WITH TERMINAL *
1025 x 175 x 344 mm (40.4 x 6.9 x 13.5 in.)


DIMENSION (H x W x D) WITH TERMINAL WITH PLINTH *
1072 x 272 x 344 mm (42.2 x 10.7 x 13.5 in.)

* Measurement per unit


FINISHES

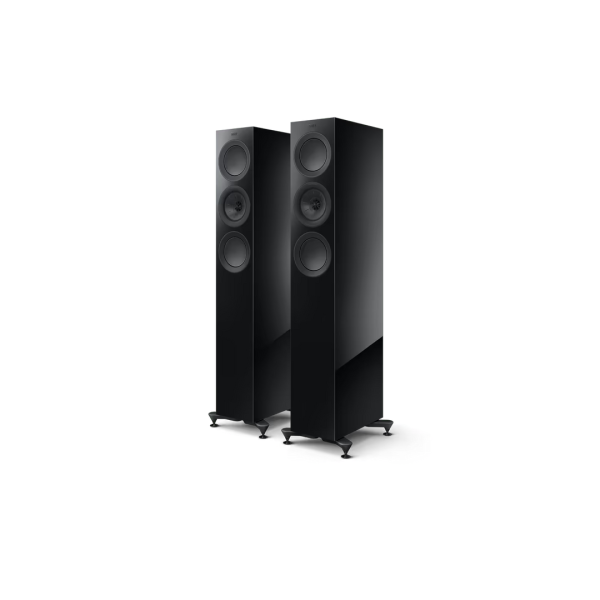

  • Black Gloss

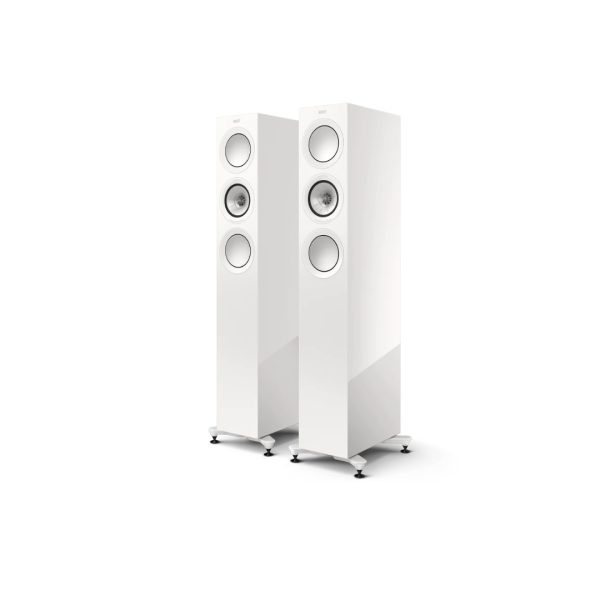

  • White Gloss

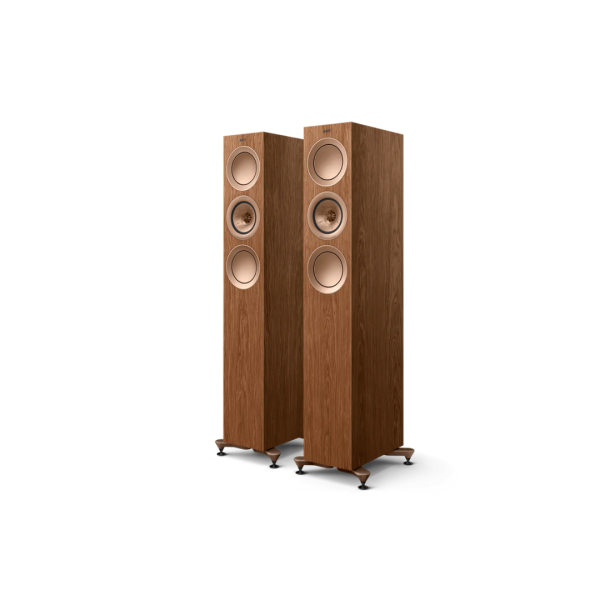

  • Walnut
In the Box
  • R5 Meta
  • Microfiber grille
  • Plinth and spike accessories
  • Port bungs
  • User manual and warranty information
